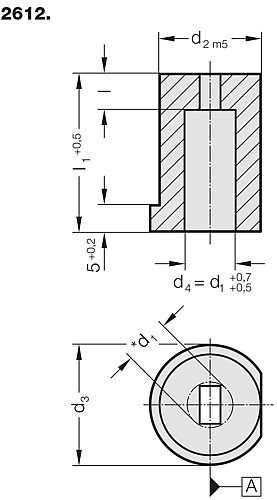

Matrix with collar, cylindrical
Material:
HSS
Order No. 2612.3.
Hardness 64 ± 2 HRC Execution:
Diameter d2 and end faces ground.

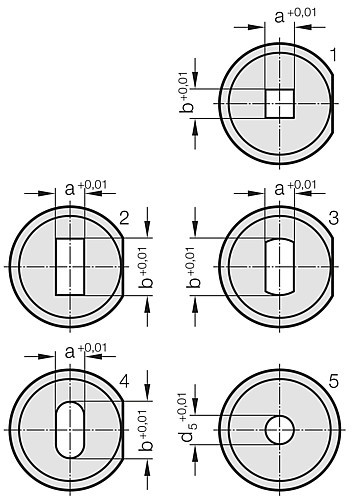

Key flats parallel with reference axis “A” unless otherwise specified.
*d1 = size over corners
With starting holes for wire-EDM as per 2611.
HSS
Order No. 2612.3.
Hardness 64 ± 2 HRC Execution:
Diameter d2 and end faces ground.
Key flats parallel with reference axis “A” unless otherwise specified.
*d1 = size over corners
With starting holes for wire-EDM as per 2611.
