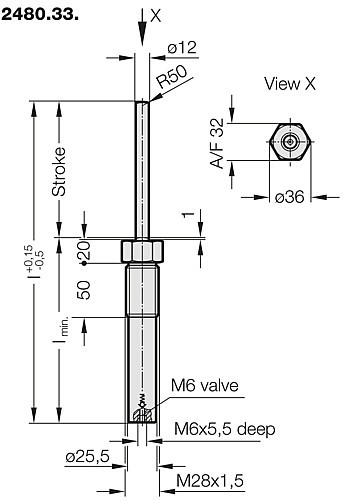

2480.33. Gas spring with hexagonal flange
Description:
The gas springs are colour-coded according to the spring force rating ranges 15–50–100–150–200 daN.
All springs, regardless of their spring force ratings, are of the same design. The differing force ratings result exclusively from the differing charge pressures.
Do take into consideration the colour-coded pressure rating during repair work and recharging. Note:
Other stroke lengths avail on request! See gas spring 2480.32.
Order No for spare parts kit: 2480.21.00150
Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 13 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 80 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
The gas springs are colour-coded according to the spring force rating ranges 15–50–100–150–200 daN.
All springs, regardless of their spring force ratings, are of the same design. The differing force ratings result exclusively from the differing charge pressures.
Do take into consideration the colour-coded pressure rating during repair work and recharging. Note:
Other stroke lengths avail on request! See gas spring 2480.32.
Order No for spare parts kit: 2480.21.00150
Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 13 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 80 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 5 items
| SKU | Spring force start | Max. stroke | HUB | Length | Piston rod diameter | Cylinder pipe diameter | |
|---|---|---|---|---|---|---|---|
| 2480.33.00015.125 | 15 daN | 125 mm | 126 | 292 mm | 12 mm | 24.9 mm | |
| 2480.33.00050.125 | 50 daN | 125 mm | 126 | 292 mm | 12 mm | 24.9 mm | |
| 2480.33.00100.125 | 100 daN | 125 mm | 126 | 292 mm | 12 mm | 24.9 mm | |
| 2480.33.00150.125 | 150 daN | 125 mm | 126 | 292 mm | 12 mm | 24.9 mm | |
| 2480.33.00200.125 | 200 daN | 125 mm | 126 | 292 mm | 12 mm | 24.9 mm |
